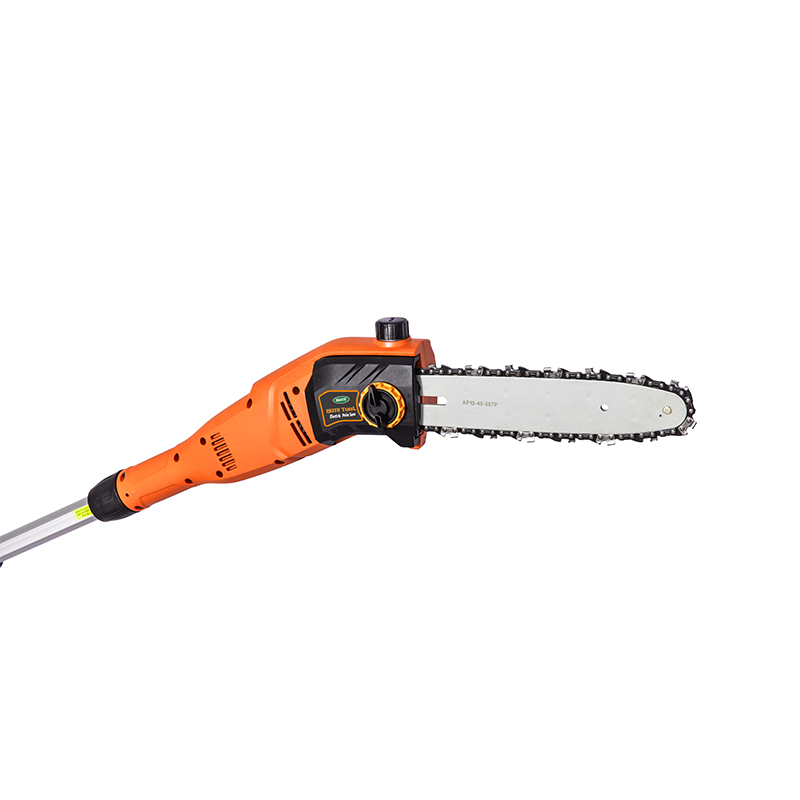

OT7C302S Electric Chain Pole Saw CE Certificates SDS Oiling Copper Motor Telescopic

Views: 200
Contact Inquiry PDF Download
  • PRODUCT NO.

    OT7C302S

    OT7C302US

    Voltage/Frequency

    220 V-240 V~/50Hz/60HZ

    120V/60Hz

    No Load Speed

    6300/min

    6300/min

    Power

    750W

    6.5A/8A

    Chain Speed

    11m/s

    11m/s

    Cutting Length

    200mm/250mm

    200mm/250mm

    Oil Volume

    75ml

    75ml

    Max Height

    Tool Free Adjustment

    Tool Free Adjustment

    Cutting Angle

    2.75M(200mm bar)

    2.75M(200mm bar)

    Chain Adjustment

    Fixed

    Fixed

    Net Weight

    3.56kgs

    3.56kgs

    Approval

    GS/EMC/CE

    ETL

    Loading Qty(20’/40’/40’HQ)

    1400pcs/3000pcs/3600pcs

    1400pcs/3000pcs/3600pcs

  • Description:

    1.Fashionable design, durable with good quality carbon brush and bearing.

    2.Copper wire motor, strong power, efficient heat dissipation system, fast cutting without jamming saw.

    3.Anti self locking switch to ensure safe use.

    4.Automatic chain oiling system, lubricate the chain fully to prevent oil leakage.

    5.The anti-skid handle design conforms to ergonomics.

    6.Max.2.75M Cutting Height, the cutting head can be adjusted for fixed 30° angles, with oil level window, convenient for use.

    7.Telescopic Pole extended by 70cm from two sides offer better balance.

    Major pole: fiberglass,

    Extended poles: Aluminium.

    With double Insulated Cord and Safety Button.
